Anexo D: Archivos de datos
Contenido íntegro de los ficheros de datos originales que utiliza Explocal en tiempo de ejecución: propiedades de los reactivos, constantes de equilibrio, propiedades de los productos de explosión, fichero de inicialización y catálogo de errores.
D.1 DATOS DE LOS REACTIVOS (REACTIVOS.DAT)
_____________________________________________________________
2,4 Dinitrotolueno (DNT)
C7H6N2O4
-70.0
2,6 Dinitrotolueno (DNT)
C7H6N2O4
-38.1
Acetato Butirato de Celulosa (CAB)
C14940H22504O7688
-1232.6
Acetil Trietil Citrato (ATEC)
C14H22O8
-1462.2
Acetona
C3H6O
-984.8
Ácido Esteárico
C18H36O2
-751.1
Agua Líquida
H2O
-3869.7
Alcohol Etílico
C2H6O
-1395.6
Almidón
C6H10O5
-1203.4
Aluminio
Al
0.0
Azufre (Rómbico)
S
0.0
Bis-Dinitropropiacetal/Formal (BDNPA/F)
C7.489H12.978N4O10
-438.8
Carbonato Cálcico
CO3Ca
-2883.0
Carbonato de Plomo
CO3Pb
-626.1
Celulosa
C6H10O5
-1203.4
Cera de Parafina
C25H52
-475.2
Circonio
Zr
0.0
Clorato Potásico
ClO3K
-753.3
Clorato Sódico
ClO3Na
-801.5
Cloruro Amónico
ClNH4
-1368.0
Cloruro Sódico
ClNa
-1693.5
KEL-F-800
C8H2Cl3F11
-1386.0
VITON-A
C5H3.5F6.5
-1762.7
Criolita Potásica
K3AlF6
-788.1
Criolita Sódica
Na3AlF6
-5146.9
Dibutil Adipato (DBA)
C14H26O6
-668.9
Dibutilftalato (DBP)
C16H22O4
-696.0
Dietil Difenilurea (CENTRALITA I)
C17H20N2O
-68.2
Dietil Ftalato (DEP)
C12H14O4
-811.2
Difenil Amina (DPA)
C12H11N
186.1
Difeniluretano (DPU)
C15H15NO2
-312.8
Diisocianato de isoforona (IPDI)
C12H18O2N2
-443.3
Dióxido de Plomo
PbO2
-274.7
Estearato Cálcico
C36H70O4Ca
-786.0
Estearato de Plomo
C36H70O4Pb
-775.1
Etilfeniluretano (EPU)
C11H15NO2
-545.5
Fécula
C6H10O5
-1473.4
Ferroceno
C10H10Fe
197.0
Fueloil
C7.05H14
-358.0
Gasóleo
C7.05H14
-358.0
Glicol
C2H6O2
-1714.0
Goma Guar
C3.726H5.589O3.105
-1648.0
Grafito
C
0.0
Hexanitrostilbeno (HNS)
C14H6N6O12
46.6
Hexógeno (RDX)
C3H6N6O6
99.6
Lecitina
C44H90NO9P
-1392.0
Magnesio
Mg
0.0
MAPO
C9H18N3OP
-353.9
Metiletil Difenilurea (CENTRALITA III)
C16H18N20
-72.4
Metilfeniluretano (MPU)
C10H13NO2
-538.5
Micro Esferas
O3.1Al0.275Na0.129K0.085Ca0.018Si1.282
-3435.8
Monooleato de Sorbitano
C24H44O6
43.6
Monóxido de Plomo
PbO
-229.3
Nitrato Amónico
N2O3H4
-1057.0
Nitrato de Bario
BaN2O6
-897.4
Nitrato de Litio
NO3Li
-1654.7
Nitrato Potásico
NO3K
-1157.0
Nitrato Sódico
NO3Na
-1301.0
Nitrocelulosa 11,50% N
C6000H7889N2111O9222
-667.8
Nitrocelulosa 11,75% N
C6000H7815N2185O9370
-652.2
Nitrocelulosa 11,80% N
C6000H7800N2200O9400
-649.1
Nitrocelulosa 11,85% N
C6000H7785N2215O9430
-646.0
Nitrocelulosa 12,00% N
C6000H7739N2261O9521
-636.6
Nitrocelulosa 12,20% N
C6000H7677N2323O9645
-624.2
Nitrocelulosa 12,25% N
C6000H7662N2338O9677
-621.1
Nitrocelulosa 12,50% N
C6000H7582N2418O9836
-605.6
Nitrocelulosa 12,60% N
C6000H7549N2451O9901
-613.9
Nitrocelulosa 12,75% N
C6000H7500N2500O10000
-590.0
Nitrocelulosa 13,00% N
C6000H7416N2584O10168
-574.5
Nitrocelulosa 13,15% N
C6000H7364N2636O10271
-565.1
Nitrocelulosa 13,25% N
C6000H7329N2671O10341
-558.9
Nitrocelulosa 13,50% N
C6000H7240N2760O10518
-543.3
Nitroglicerina (NG)
C3H5N3O9
-369.7
Nitroglicol
C2H4N2O6
-359.8
Nitroguanidina (NQ)
CH4N4O2
-184.9
Nitrometano (NM)
CH3NO2
-413.7
Octógeno (RMX)
C4H8N8O8
84.6
Óxido de Magnesio
MgO
-3538.0
Óxido de Titanio
TiO2
-2804.0
Pentrita (PETN)
C5H8N4O12
-379.9
Perclorato Amónico
H4NO4Cl
-578.0
Perclorato de Litio
ClO4Li
-925.4
Perclorato Potásico
ClO4K
-736.7
Petróleo
C7.05H14
-358.0
Pirolusita
MnO2
-1423.5
Poliisobutileno (PIB)
CH2
-331.0
Polipropilenglicol (PPG)
C150H302O51
-852.9
Potasio
K
0.0
Sílice
SiO2
-3613.1
Silicio
Si
0.0
Sulfato Cálcico
SO4Ca
-2493.3
Sulfato de Bario
SO4Ba
-1503.5
Sulfato potásico
SO4K2
-1965.1
Talco
Mg3Si4O12H2
-3721.0
Tetralita (TETRYL)
C7H5N5O8
46.7
Tetróxido de Plomo (MINIO)
Pb3O4
-248.7
Tiourea
CH4N2S
-267.0
Triacetina
C9H14O6
-1256.9
Triaminotrinitro Benceno (TATB)
C6H6N6O6
-122.1
Trinitrotolueno (TNT)
C7H5N3O6
-44.2
Urea
CH4N2O
-1292.0
Wolframio
W
0.0
___________________________________________________________D.2 DATOS DE LAS CONSTANTES DE EQUILIBRIO (CONSTANT.DAT)
;---------------------------------------------------------------------
; Archivo: CONSTANT.DAT
; Fuente: norma UNE 31-002-94, pág 24 AnexoC
;---------------------------------------------------------------------
; Constante de equilibrio K1(-)
; Nota: K1 es adimensional.
; K1=P[CO]·P[H20]/P[CO2]·P[H2]
[K1]
t298=9.584E-06
t300=1.062E-05
t400=6.442E-04
t500=7.261E-03
t600=3.516E-02
t700=1.054E-01
t800=0.2361
t900=0.4335
t1000=0.6934
t1100=1.0069
t1200=1.3646
t1300=1.7498
t1400=2.1538
t1500=2.5645
t1600=2.9785
t1700=3.3884
t1800=3.7757
t1900=4.1591
t2000=4.5290
t2100=4.8753
t2200=5.2000
t2300=5.5208
t2400=5.8076
t2500=6.0814
t2600=6.3387
t2700=6.5766
t2800=6.8077
t2900=7.0146
t3000=7.2111
t3100=7.3961
t3200=7.5509
t3300=7.7268
t3400=7.8524
t3500=7.9899
t3600=8.1196
t3700=8.2224
t3800=8.3368
t3900=8.4333
t4000=8.5114
t4100=8.6099
t4200=8.6497
t4300=8.7297
t4400=8.7902
t4500=8.8308
t4600=8.9125
t4700=8.9536
t4800=8.9743
t4900=8.9950
t5000=9.0365
t5100=9.0573
t5200=9.0782
t5300=9.0872
t5400=9.0991
t5500=9.1201
t5600=9.1201
t5700=9.1201
t5800=9.1201
t5900=9.1201
t6000=9.1411
; Constante de equilibrio K2(Pa)
; Nota: 1 Pa 1 N/m2 10^5 bar
; K2 P[CO]^2/P[CO2]
[K2]
t300=5.810E-19
t400=1.470E-11
t500=4.002E-07
t600=3.501E-04
t700=4.287E-02
t800=1.535E+00
t900=2.416E+01
t1000=2.134E+02
t1100=1.247E+03
t1200=5.335E+03
t1300=1.800E+04
t1400=5.037E+04
t1500=1.214E+05
t1600=2.601E+05
t1700=5.045E+05
t1800=8.995E+05
t1900=1.502E+06
t2000=2.373E+06
t2100=3.557E+06
t2200=5.104E+06
t2300=7.089E+06
t2400=9.508E+06
t2500=1.240E+07
t2600=1.579E+07
t2700=1.968E+07
t2800=2.411E+07
t2900=2.903E+07
t3000=3.437E+07
t3100=4.017E+07
t3200=4.636E+07
t3300=5.306E+07
t3400=5.968E+07
t3500=6.687E+07
t3600=7.430E+07
t3700=8.186E+07
t3800=8.964E+07
t3900=9.755E+07
t4000=1.053E+08
t4100=1.134E+08
t4200=1.208E+08
t4300=1.291E+08
t4400=1.367E+08
t4500=1.442E+08
t4600=1.522E+08
t4700=1.597E+08
t4800=1.667E+08
t4900=1.734E+08
t5000=1.800E+08
t5100=1.869E+08
t5200=1.933E+08
t5300=1.991E+08
t5400=2.051E+08
t5500=2.108E+08
t5600=2.158E+08
t5700=2.215E+08
t5800=2.264E+08
t5900=2.304E+08
t6000=2.356E+08
;---------------------------------------------------------------------
; Fin Archivo: CONSTANT.DAT
;---------------------------------------------------------------------D.3 DATOS DE LOS PRODUCTOS (TABLPROD.DAT)
;--------------------------------------------------------------------
; Archivo: TABLPROD.DAT
; Fuente: CRC Handbook of Chemistry and
; Physics, Tablas JANAF, UNE 31-002-94 y
; Forum atómico Español.
; Unidades:
; masa_atom (g/mol)
; ener_form (kcal/mol) T=298 K
; temp_vapor(K)
; HT-H298 (kcal/mol)
; Nota: t300 quiere decir entalpía en kcal/mol a 300 K
;---------------------------------------------------------------------

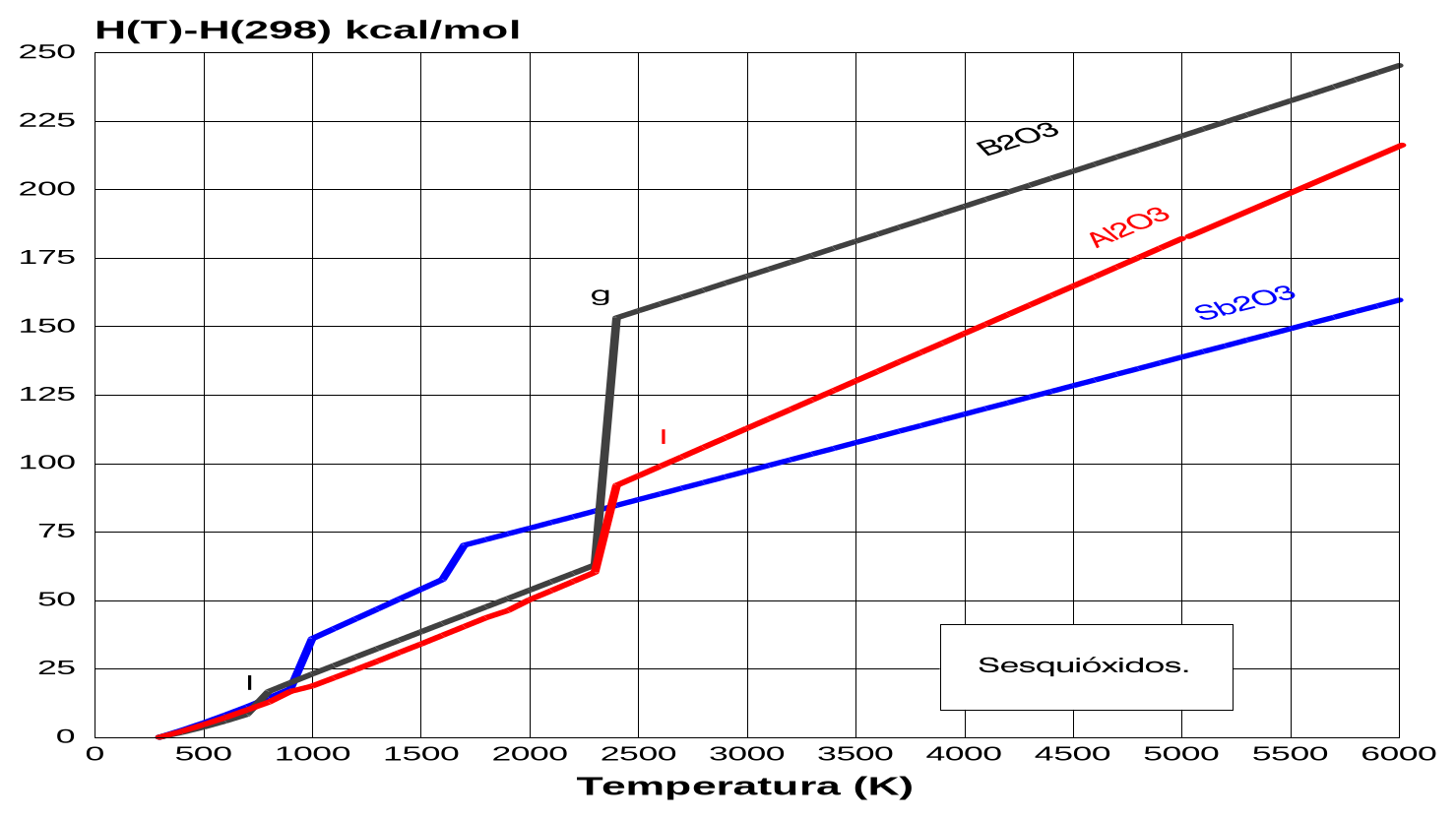

[0]
simbolo=Al
masa_atom=26.98154
prod_exp=Al2O3
prod_bo=Al2O3
ener_form=-396.000
temp_vapor=6000
t300=0.035
t400=2.147
t500=4.577
t600=7.193
t700=9.940
t800=12.778
t900=16.685
t1000=18.644
t1100=21.644
t1200=24.674
t1300=27.745
t1400=30.859
t1500=34.004
t1600=37.181
t1700=40.388
t1800=43.624
t1900=46.235
t2000=50.175
t2100=53.486
t2200=56.819
t2300=60.176
t2400=91.925
t2500=95.387
t2600=98.849
t2700=102.312
t2800=105.774
t2900=109.236
t3000=112.699
t3100=116.161
t3200=119.623
t3300=123.085
t3400=126.548
t3500=130.010
t3600=133.472
t3700=136.934
t3800=140.397
t3900=143.859
t4000=147.321
t4100=150.784
t4200=154.246
t4300=157.708
t4400=161.170
t4500=164.633
t4600=168.095
t4700=171.557
t4800=175.020
t4900=178.482
t5000=181.944
t5100=185.406
t5200=188.868
t5300=192.330
t5400=195.792
t5500=199.254
t5600=202.716
t5700=206.178
t5800=209.640
t5900=213.102
t6000=216.564
[1]
simbolo=B
masa_atom=10.811
prod_exp=B2O3
prod_bo=B2O3
ener_form=-302.800
temp_vapor=2316
t300=0.028
t400=1.712
t500=3.671
t600=5.872
t700=8.339
t800=16.700
t900=19.880
t1000=23.033
t1100=26.155
t1200=29.244
t1300=32.311
t1400=35.367
t1500=38.421
t1600=41.475
t1700=44.530
t1800=47.576
t1900=50.630
t2000=53.684
t2100=56.738
t2200=59.792
t2300=62.846
t2400=153.069
t2500=155.589
t2600=158.115
t2700=160.644
t2800=163.177
t2900=165.714
t3000=168.253
t3100=170.795
t3200=173.340
t3300=175.887
t3400=178.436
t3500=180.987
t3600=183.540
t3700=186.094
t3800=188.650
t3900=191.207
t4000=193.765
t4100=196.325
t4200=198.886
t4300=201.448
t4400=204.010
t4500=206.574
t4600=209.139
t4700=211.704
t4800=214.270
t4900=216.837
t5000=219.404
t5100=221.972
t5200=224.541
t5300=227.110
t5400=229.680
t5500=232.250
t5600=234.821
t5700=237.392
t5800=239.963
t5900=242.535
t6000=245.107
[2]
simbolo=Ba
masa_atom=137.327
prod_exp=BaO
prod_bo=BaO
ener_form=-134.300
temp_vapor=6000
t300=0.020
t400=1.165
t500=2.387
t600=3.652
t700=4.946
t800=6.263
t900=7.598
t1000=8.948
t1100=10.314
t1200=11.692
t1300=13.083
t1400=14.487
t1500=15.902
t1600=17.329
t1700=18.768
t1800=20.217
t1900=21.678
t2000=23.149
t2100=24.632
t2200=39.921
t2300=41.311
t2400=42.701
t2500=44.091
t2600=45.481
t2700=46.871
t2800=48.261
t2900=49.651
t3000=51.041
t3100=52.431
t3200=53.821
t3300=55.211
t3400=56.601
t3500=57.991
t3600=59.381
t3700=60.771
t3800=62.161
t3900=63.551
t4000=64.941
t4100=66.331
t4200=67.721
t4300=69.111
t4400=70.501
t4500=71.891
t4600=73.281
t4700=74.671
t4800=76.061
t4900=77.451
t5000=78.841
t5100=80.231
t5200=81.621
t5300=83.011
t5400=84.401
t5500=85.791
t5600=87.181
t5700=88.571
t5800=89.961
t5900=91.351
t6000=92.741

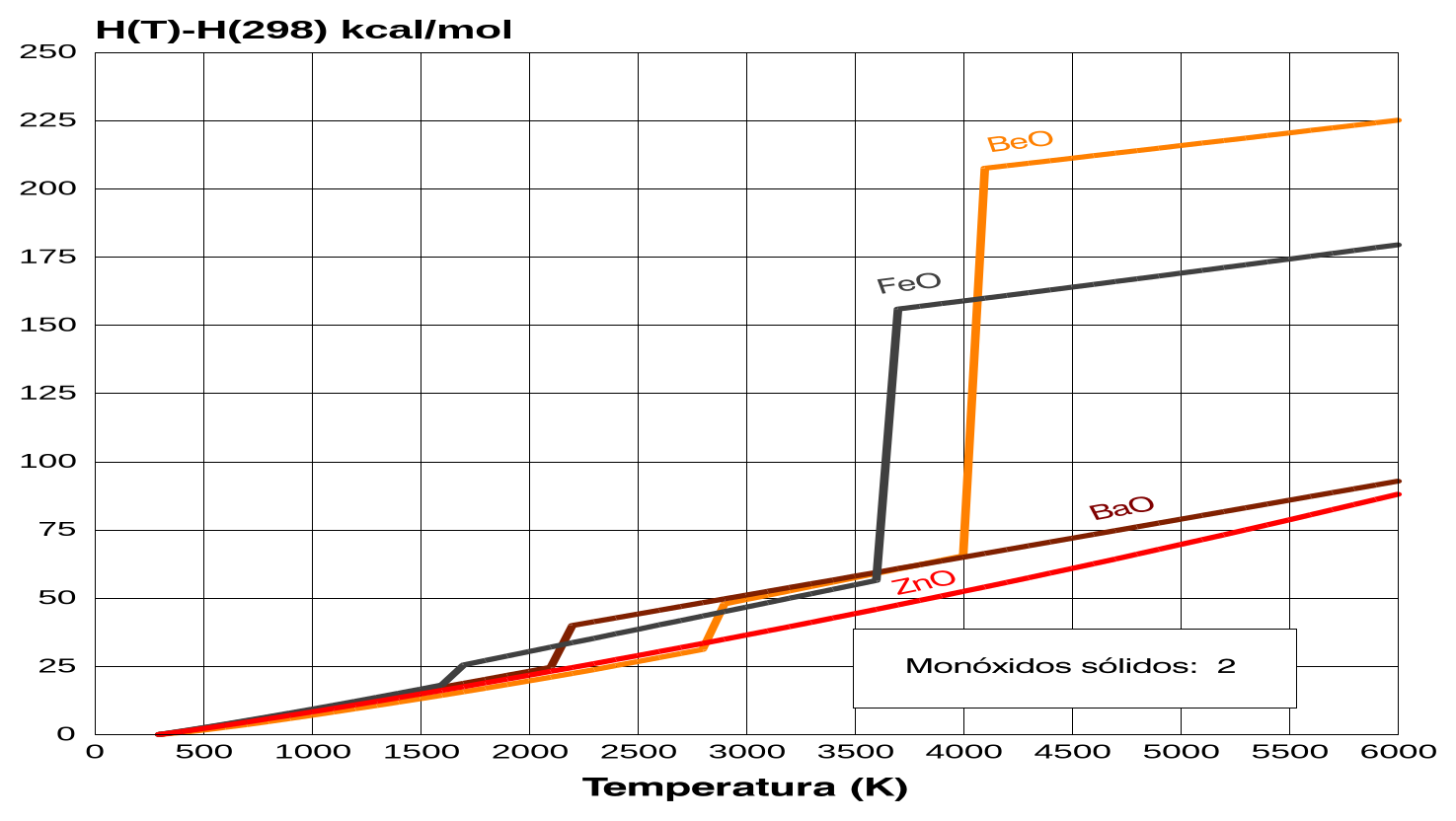

[3]
simbolo=Be
masa_atom=9.01218
prod_exp=BeO
prod_bo=BeO
ener_form=-142.800
temp_vapor=4060
t300=0.011
t400=0.727
t500=1.594
t600=2.567
t700=3.614
t800=4.716
t900=5.855
t1000=7.019
t1100=8.200
t1200=9.399
t1300=10.614
t1400=11.847
t1500=13.098
t1600=14.366
t1700=15.652
t1800=16.955
t1900=18.275
t2000=19.613
t2100=20.968
t2200=22.341
t2300=23.731
t2400=25.234
t2500=26.697
t2600=28.168
t2700=29.647
t2800=31.134
t2900=47.813
t3000=49.413
t3100=51.013
t3200=52.613
t3300=54.213
t3400=55.813
t3500=57.413
t3600=59.013
t3700=60.613
t3800=62.213
t3900=63.813
t4000=65.413
t4100=207.382
t4200=208.300
t4300=209.220
t4400=210.140
t4500=211.061
t4600=211.982
t4700=12.905
t4800=213.829
t4900=214.753
t5000=215.678
t5100=216.604
t5200=217.531
t5300=218.458
t5400=19.386
t5500=220.315
t5600=221.246
t5700=222.176
t5800=223.107
t5900=224.039
t6000=224.972
[4]
simbolo=Br
masa_atom=79.904
prod_exp=BrH
prod_bo=BrH
ener_form=-9.010
temp_vapor=206.15
t300=0.013
t400=0.710
t500=1.411
t600=2.120
t700=2.840
t800=3.575
t900=4.325
t1000=5.090
t1100=5.869
t1200=6.662
t1300=7.466
t1400=8.282
t1500=9.107
t1600=9.941
t1700=10.782
t1800=11.631
t1900=12.486
t2000=13.346
t2100=14.212
t2200=15.082
t2300=15.956
t2400=16.835
t2500=17.717
t2600=18.602
t2700=19.491
t2800=20.382
t2900=21.276
t3000=22.173
t3100=23.072
t3200=23.974
t3300=24.877
t3400=25.783
t3500=26.691
t3600=27.601
t3700=28.513
t3800=29.426
t3900=30.341
t4000=31.258
t4100=32.176
t4200=33.096
t4300=34.018
t4400=34.941
t4500=35.866
t4600=36.791
t4700=37.719
t4800=38.647
t4900=39.578
t5000=40.509
t5100=41.442
t5200=42.375
t5300=43.311
t5400=44.247
t5500=45.185
t5600=46.124
t5700=47.064
t5800=48.005
t5900=48.948
t6000=49.891
[5]
simbolo=C
masa_atom=12.011
prod_exp=CO2
prod_bo=CO2
ener_form=-94.050
temp_vapor=194.65
t300=0.016
t400=0.958
t500=1.987
t600=3.087
t700=4.245
t800=5.453
t900=6.702
t1000=7.984
t1100=9.296
t1200=10.632
t1300=11.988
t1400=13.362
t1500=14.750
t1600=16.152
t1700=17.565
t1800=18.987
t1900=20.418
t2000=21.857
t2100=23.303
t2200=24.755
t2300=26.212
t2400=27.674
t2500=29.141
t2600=30.613
t2700=32.088
t2800=33.567
t2900=35.049
t3000=36.535
t3100=38.024
t3200=39.515
t3300=41.010
t3400=42.507
t3500=44.006
t3600=45.508
t3700=47.012
t3800=48.518
t3900=50.027
t4000=51.538
t4100=53.051
t4200=54.566
t4300=56.082
t4400=57.601
t4500=59.122
t4600=60.644
t4700=62.169
t4800=63.695
t4900=65.223
t5000=66.753
t5100=68.285
t5200=69.819
t5300=71.355
t5400=72.893
t5500=74.433
t5600=75.976
t5700=77.521
t5800=79.068
t5900=80.617
t6000=82.168
[6]
simbolo=Ca
masa_atom=40.078
prod_exp=CaO
prod_bo=CaO
ener_form=-115.490
temp_vapor=6000
t300=0.019
t400=1.098
t500=2.262
t600=3.492
t700=4.781
t800=6.125
t900=7.521
t1000=8.969
t1100=10.467
t1200=12.016
t1300=13.614
t1400=15.261
t1500=16.958
t1600=18.704
t1700=20.488
t1800=22.342
t1900=24.234
t2000=26.175
t2100=28.165
t2200=30.203
t2300=32.290
t2400=34.425
t2500=36.609
t2600=38.842
t2700=41.123
t2800=43.452
t2900=63.830
t3000=66.257
t3100=68.732
t3200=71.256
t3300=73.828
t3400=76.448
t3500=79.117
t3600=81.834
t3700=84.600
t3800=87.414
t3900=90.277
t4000=93.188
t4100=96.148
t4200=99.156
t4300=102.212
t4400=105.317
t4500=108.470
t4600=111.672
t4700=114.922
t4800=118.220
t4900=121.567
t5000=124.963
t5100=128.406
t5200=131.899
t5300=135.439
t5400=139.028
t5500=142.666
t5600=146.351
t5700=150.086
t5800=152.868
t5900=157.700
t6000=161.579
[7]
simbolo=Cl
masa_atom=35.4527
prod_exp=ClH
prod_bo=ClH
ener_form=-22.060
temp_vapor=188.25
t300=0.013
t400=0.710
t500=1.408
t600=2.112
t700=2.823
t800=3.546
t900=4.281
t1000=5.030
t1100=5.793
t1200=6.559
t1300=7.356
t1400=8.155
t1500=8.965
t1600=9.783
t1700=10.610
t1800=11.445
t1900=12.287
t2000=13.135
t2100=13.988
t2200=14.847
t2300=15.711
t2400=16.579
t2500=17.451
t2600=18.327
t2700=19.207
t2800=20.090
t2900=20.976
t3000=21.864
t3100=22.756
t3200=23.650
t3300=24.546
t3400=25.445
t3500=26.346
t3600=27.249
t3700=28.154
t3800=29.061
t3900=29.970
t4000=30.881
t4100=31.793
t4200=32.707
t4300=33.623
t4400=34.540
t4500=35.459
t4600=36.379
t4700=37.301
t4800=38.224
t4900=39.148
t5000=40.074
t5100=41.001
t5200=41.930
t5300=42.859
t5400=43.790
t5500=44.723
t5600=45.656
t5700=46.591
t5800=47.527
t5900=48.464
t6000=49.402
[8]
simbolo=Co
masa_atom=58.9332
prod_exp=CoO
prod_bo=Co2O3
ener_form=-56.570
temp_vapor=6000
t300=0.019
t400=1.076
t500=2.155
t600=3.256
t700=4.379
t800=5.524
t900=6.691
t1000=7.880
t1100=9.091
t1200=10.324
t1300=11.579
t1400=12.856
t1500=14.155
t1600=15.476
t1700=16.819
t1800=18.184
t1900=19.571
t2000=20.980
t2100=30.664
t2200=32.214
t2300=33.764
t2400=35.314
t2500=36.864
t2600=38.414
t2700=39.964
t2800=41.514
t2900=43.064
t3000=44.614
t3100=46.164
t3200=47.714
t3300=49.264
t3400=50.814
t3500=52.364
t3600=53.914
t3700=55.464
t3800=57.014
t3900=58.564
t4000=60.114
t4100=61.664
t4200=63.214
t4300=64.764
t4400=66.314
t4500=67.864
t4600=69.414
t4700=70.964
t4800=72.514
t4900=74.064
t5000=75.614
t5100=77.164
t5200=78.714
t5300=80.264
t5400=81.814
t5500=83.364
t5600=84.914
t5700=86.464
t5800=88.014
t5900=89.564
t6000=91.114
[9]
simbolo=Cu
masa_atom=63.546
prod_exp=CuO
prod_bo=CuO
ener_form=-37.300
temp_vapor=6000
t300=0.030
t400=1.681
t500=3.394
t600=5.169
t700=7.006
t800=8.905
t900=10.866
t1000=12.889
t1100=14.974
t1200=17.121
t1300=19.330
t1400=21.601
t1500=23.934
t1600=26.329
t1700=41.739
t1800=43.939
t1900=46.139
t2000=48.339
t2100=50.539
t2200=52.739
t2300=54.939
t2400=57.139
t2500=59.339
t2600=61.539
t2700=63.739
t2800=65.939
t2900=68.139
t3000=70.339
t3100=72.539
t3200=74.739
t3300=76.939
t3400=79.139
t3500=81.339
t3600=83.539
t3700=85.739
t3800=87.939
t3900=90.139
t4000=92.339
t4100=94.539
t4200=96.739
t4300=98.939
t4400=101.139
t4500=103.339
t4600=105.539
t4700=107.739
t4800=109.939
t4900=112.139
t5000=114.339
t5100=116.539
t5200=118.739
t5300=120.939
t5400=123.139
t5500=125.339
t5600=127.539
t5700=129.739
t5800=131.939
t5900=134.139
t6000=136.339
[10]
simbolo=F
masa_atom=18.9984
prod_exp=FH
prod_bo=FH
ener_form=-65.440
temp_vapor=292.69
t300=0.013
t400=0.709
t500=1.406
t600=2.104
t700=2.804
t800=3.508
t900=4.217
t1000=4.934
t1100=5.660
t1200=6.395
t1300=7.140
t1400=7.896
t1500=8.661
t1600=9.437
t1700=10.221
t1800=11.015
t1900=11.816
t2000=12.626
t2100=13.443
t2200=14.267
t2300=15.097
t2400=15.933
t2500=16.774
t2600=17.621
t2700=18.473
t2800=19.329
t2900=20.189
t3000=21.054
t3100=21.922
t3200=22.794
t3300=23.669
t3400=24.548
t3500=25.429
t3600=26.313
t3700=27.200
t3800=28.090
t3900=28.982
t4000=29.877
t4100=30.774
t4200=31.673
t4300=32.574
t4400=33.478
t4500=34.383
t4600=35.290
t4700=36.199
t4800=37.110
t4900=38.023
t5000=38.937
t5100=39.853
t5200=40.771
t5300=41.690
t5400=42.611
t5500=43.533
t5600=44.457
t5700=45.382
t5800=46.308
t5900=47.236
t6000=48.166
[11]
simbolo=Fe
masa_atom=55.847
prod_exp=FeO
prod_bo=Fe2O3
ener_form=-64.720
temp_vapor=3687
t300=0.022
t400=1.240
t500=2.497
t600=3.792
t700=5.119
t800=6.475
t900=7.857
t1000=9.263
t1100=10.692
t1200=12.142
t1300=13.613
t1400=15.104
t1500=16.611
t1600=18.134
t1700=25.468
t1800=27.097
t1900=28.728
t2000=30.358
t2100=31.988
t2200=33.618
t2300=35.247
t2400=36.878
t2500=38.507
t2600=40.138
t2700=41.768
t2800=43.397
t2900=45.028
t3000=46.658
t3100=48.287
t3200=49.917
t3300=51.548
t3400=53.178
t3500=54.807
t3600=56.438
t3700=155.825
t3800=156.812
t3900=157.803
t4000=158.798
t4100=159.797
t4200=160.800
t4300=161.807
t4400=162.817
t4500=163.830
t4600=164.847
t4700=165.867
t4800=166.890
t4900=167.915
t5000=168.943
t5100=169.974
t5200=171.007
t5300=172.042
t5400=173.079
t5500=174.119
t5600=175.160
t5700=176.202
t5800=177.246
t5900=178.292
t6000=179.339
[12]
simbolo=H
masa_atom=1.00794
prod_exp=H2O
prod_bo=H2O
ener_form=-57.500
temp_vapor=373.15
t300=0.015
t400=0.825
t500=1.654
t600=2.509
t700=3.390
t800=4.300
t900=5.240
t1000=6.209
t1100=7.210
t1200=8.240
t1300=9.298
t1400=10.384
t1500=11.495
t1600=12.630
t1700=13.787
t1800=14.964
t1900=16.160
t2000=17.373
t2100=18.602
t2200=19.846
t2300=21.103
t2400=22.372
t2500=23.653
t2600=24.945
t2700=26.246
t2800=27.556
t2900=28.875
t3000=30.201
t3100=31.535
t3200=32.876
t3300=34.223
t3400=35.577
t3500=36.936
t3600=38.300
t3700=39.669
t3800=41.043
t3900=42.422
t4000=43.805
t4100=45.192
t4200=46.583
t4300=47.977
t4400=49.375
t4500=50.777
t4600=52.181
t4700=53.589
t4800=55.000
t4900=56.413
t5000=57.829
t5100=59.248
t5200=60.669
t5300=62.093
t5400=63.520
t5500=64.949
t5600=66.381
t5700=67.815
t5800=69.251
t5900=70.690
t6000=72.131
[13]
simbolo=Hg
masa_atom=200.59
prod_exp=Hg
prod_bo=HgO
ener_form=0.000
temp_vapor=629.73
t300=0.012
t400=0.673
t500=1.325
t600=1.974
t700=16.649
t800=17.146
t900=17.642
t1000=18.139
t1100=18.636
t1200=19.133
t1300=19.630
t1400=20.126
t1500=20.623
t1600=21.120
t1700=21.617
t1800=22.114
t1900=22.610
t2000=23.107
t2100=23.604
t2200=24.101
t2300=24.598
t2400=25.094
t2500=25.591
t2600=26.088
t2700=26.585
t2800=27.082
t2900=27.578
t3000=28.075
t3100=28.572
t3200=29.069
t3300=29.566
t3400=30.062
t3500=30.559
t3600=31.056
t3700=31.553
t3800=32.050
t3900=32.547
t4000=33.044
t4100=33.541
t4200=34.038
t4300=34.535
t4400=35.032
t4500=35.529
t4600=36.027
t4700=36.525
t4800=37.023
t4900=37.521
t5000=38.019
t5100=38.518
t5200=39.018
t5300=39.518
t5400=40.018
t5500=40.519
t5600=41.021
t5700=41.523
t5800=42.027
t5900=42.532
t6000=43.037
[14]
simbolo=K
masa_atom=39.0983
prod_exp=K2CO3
prod_bo=K2O
ener_form=-273.930
temp_vapor=6000
t300=0.051
t400=2.956
t500=6.164
t600=9.640
t700=13.359
t800=17.309
t900=21.487
t1000=25.890
t1100=30.518
t1200=42.008
t1300=47.008
t1400=52.008
t1500=57.008
t1600=62.008
t1700=67.008
t1800=72.008
t1900=77.008
t2000=82.008
t2100=87.008
t2200=92.008
t2300=97.008
t2400=102.008
t2500=107.008
t2600=112.008
t2700=117.008
t2800=122.008
t2900=127.008
t3000=132.008
t3100=137.008
t3200=142.008
t3300=147.008
t3400=152.008
t3500=157.008
t3600=162.008
t3700=167.008
t3800=172.008
t3900=177.008
t4000=182.008
t4100=187.008
t4200=192.008
t4300=197.008
t4400=202.008
t4500=207.008
t4600=212.008
t4700=217.008
t4800=222.008
t4900=227.008
t5000=232.008
t5100=237.008
t5200=242.008
t5300=247.008
t5400=252.008
t5500=257.008
t5600=262.008
t5700=267.008
t5800=272.008
t5900=277.008
t6000=282.008
[15]

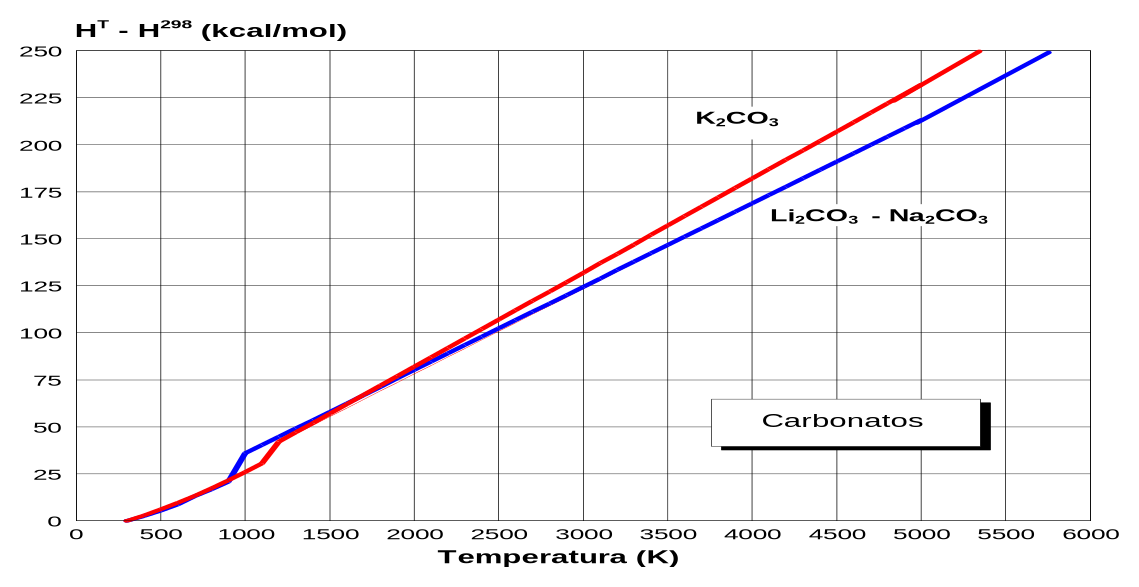

simbolo=Li
masa_atom=6.94100
prod_exp=Li2CO3
prod_bo=Li2O
ener_form=-289.750
temp_vapor=6000
t300=0.043
t400=2.543
t500=5.418
t600=8.736
t700=13.127
t800=16.711
t900=20.726
t1000=35.879
t1100=40.311
t1200=44.743
t1300=49.175
t1400=53.607
t1500=58.039
t1600=62.471
t1700=66.903
t1800=71.335
t1900=75.767
t2000=80.199
t2100=84.631
t2200=89.063
t2300=93.495
t2400=97.927
t2500=102.359
t2600=106.791
t2700=111.223
t2800=115.655
t2900=120.087
t3000=124.519
t3100=128.951
t3200=133.383
t3300=137.815
t3400=142.247
t3500=146.679
t3600=151.111
t3700=155.543
t3800=159.975
t3900=164.407
t4000=168.839
t4100=173.271
t4200=177.703
t4300=182.135
t4400=186.567
t4500=190.999
t4600=195.431
t4700=199.863
t4800=204.295
t4900=208.727
t5000=213.159
t5100=217.591
t5200=222.023
t5300=226.455
t5400=230.887
t5500=235.319
t5600=239.751
t5700=244.183
t5800=248.615
t5900=253.047
t6000=257.479
[16]

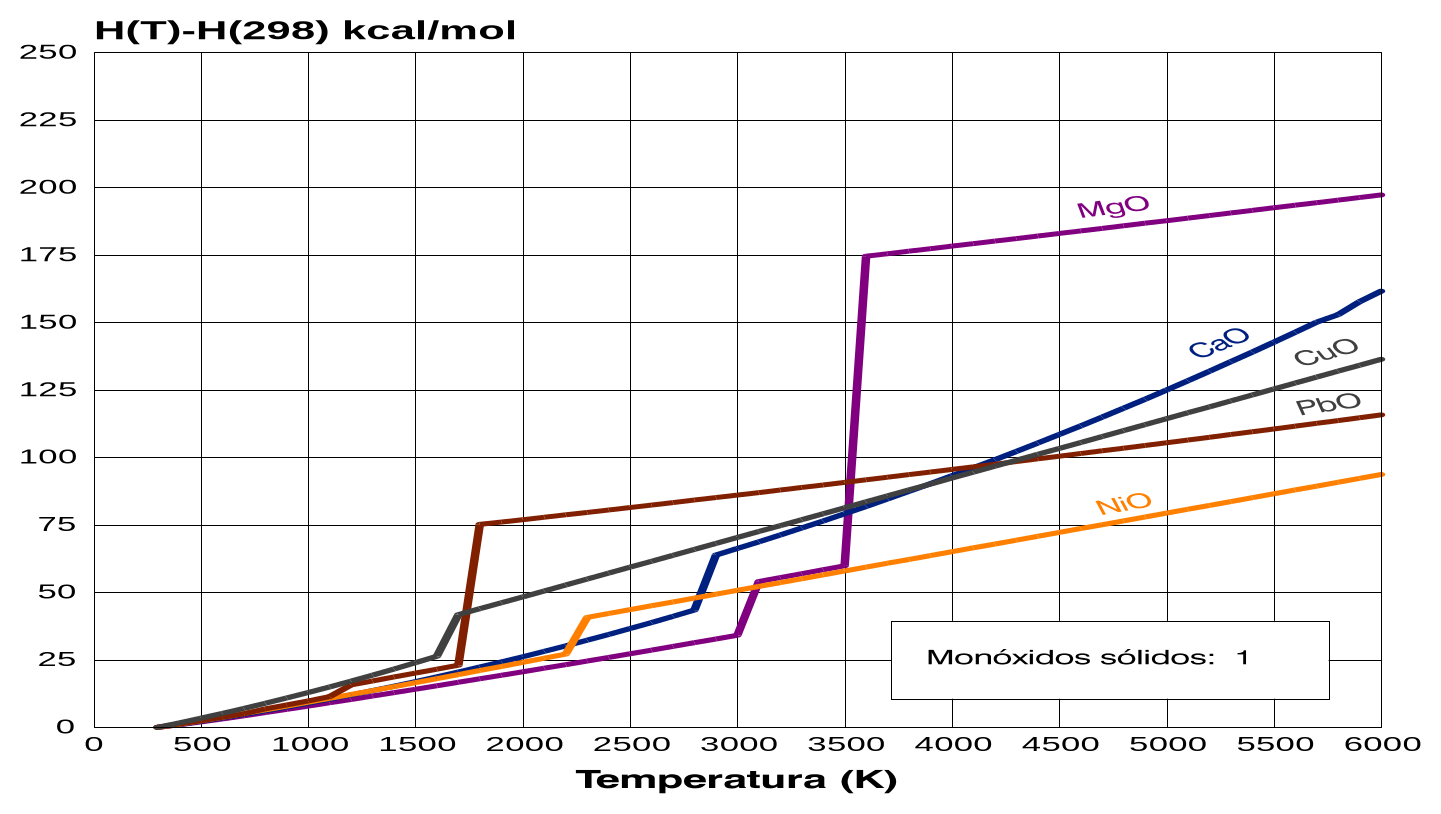

simbolo=Mg
masa_atom=24.305
prod_exp=MgO
prod_bo=MgO
ener_form=-143.400
temp_vapor=3533
t300=0.016
t400=0.978
t500=2.030
t600=3.138
t700=4.283
t800=5.457
t900=6.652
t1000=7.867
t1100=9.098
t1200=10.343
t1300=11.597
t1400=12.860
t1500=14.130
t1600=15.409
t1700=16.695
t1800=17.988
t1900=19.290
t2000=20.600
t2100=21.917
t2200=23.243
t2300=24.576
t2400=25.917
t2500=27.266
t2600=28.623
t2700=29.987
t2800=31.360
t2900=32.740
t3000=34.128
t3100=54.026
t3200=55.476
t3300=56.926
t3400=58.376
t3500=59.826
t3600=174.510
t3700=175.444
t3800=176.378
t3900=177.314
t4000=178.251
t4100=179.190
t4200=180.129
t4300=181.070
t4400=182.012
t4500=182.955
t4600=183.900
t4700=184.845
t4800=185.792
t4900=186.740
t5000=187.689
t5100=188.640
t5200=189.591
t5300=190.544
t5400=191.497
t5500=192.452
t5600=193.409
t5700=194.366
t5800=195.324
t5900=196.284
t6000=197.245
[17]
simbolo=Mn
masa_atom=54.93805
prod_exp=MnO
prod_bo=MnO2
ener_form=-91.770
temp_vapor=6000
t300=0.025
t400=1.130
t500=2.284
t600=3.473
t700=4.689
t800=5.930
t900=7.193
t1000=8.479
t1100=9.786
t1200=11.113
t1300=12.461
t1400=13.829
t1500=15.217
t1600=16.625
t1700=18.053
t1800=19.501
t1900=20.968
t2000=22.455
t2100=36.893
t2200=38.243
t2300=39.593
t2400=40.943
t2500=42.293
t2600=43.643
t2700=44.993
t2800=46.343
t2900=47.693
t3000=49.043
t3100=50.393
t3200=51.743
t3300=53.093
t3400=54.443
t3500=55.793
t3600=57.143
t3700=58.493
t3800=59.843
t3900=61.193
t4000=62.543
t4100=63.893
t4200=65.243
t4300=66.593
t4400=67.943
t4500=69.293
t4600=70.643
t4700=71.993
t4800=73.343
t4900=74.693
t5000=76.043
t5100=77.393
t5200=78.743
t5300=80.093
t5400=81.443
t5500=82.793
t5600=84.143
t5700=85.493
t5800=86.843
t5900=88.193
t6000=89.543
[18]

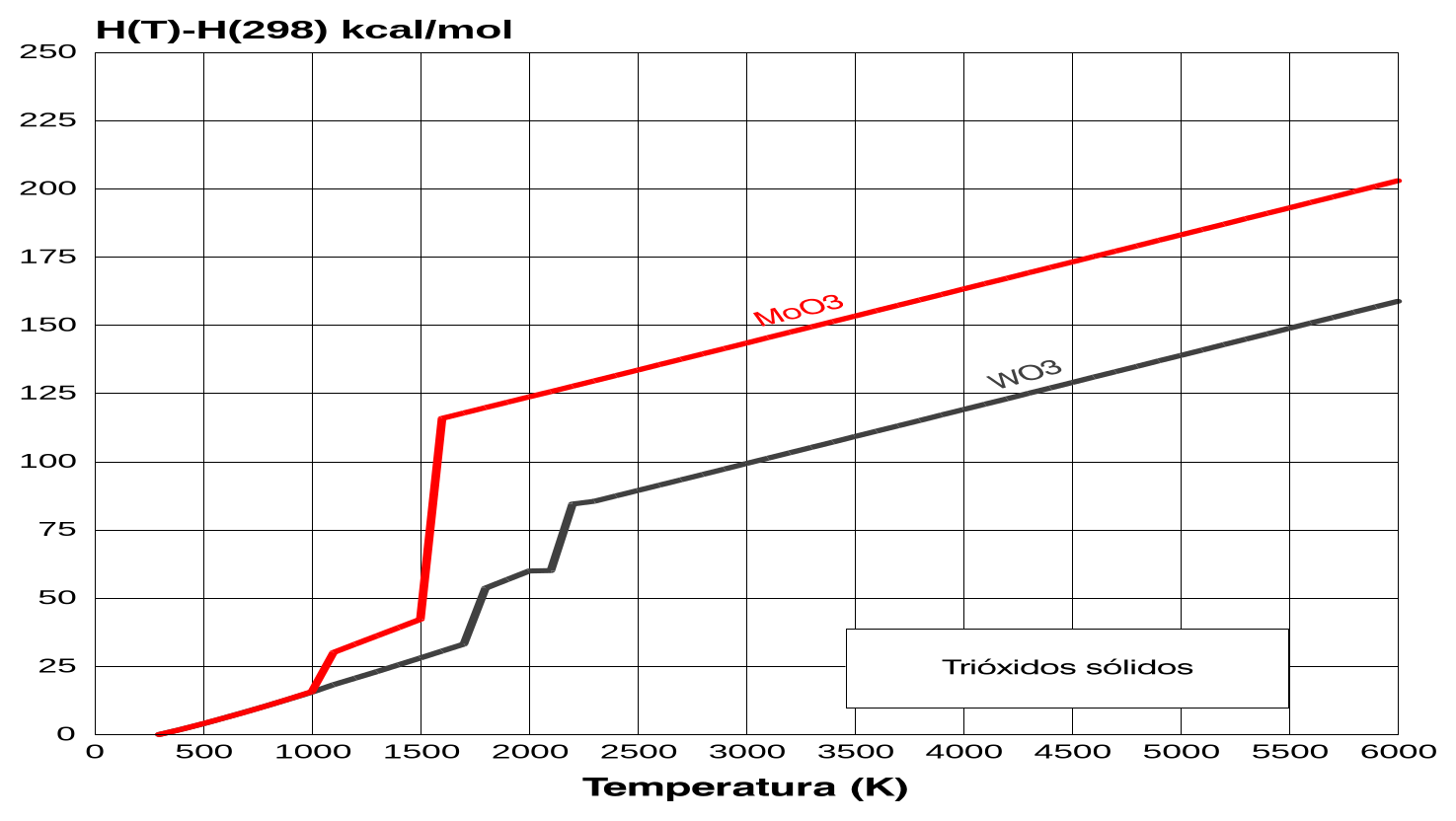

simbolo=Mo
masa_atom=95.94
prod_exp=MoO3
prod_bo=MoO3
ener_form=-177.200
temp_vapor=1600
t300=0.033
t400=1.935
t500=3.979
t600=6.125
t700=8.367
t800=10.707
t900=13.150
t1000=15.700
t1100=30.059
t1200=33.094
t1300=36.128
t1400=39.162
t1500=42.196
t1600=115.806
t1700=117.759
t1800=119.715
t1900=121.675
t2000=123.637
t2100=125.602
t2200=127.568
t2300=129.537
t2400=131.507
t2500=133.478
t2600=135.450
t2700=137.424
t2800=139.398
t2900=141.374
t3000=143.350
t3100=145.327
t3200=147.304
t3300=149.282
t3400=151.261
t3500=153.240
t3600=155.220
t3700=157.200
t3800=159.180
t3900=161.161
t4000=163.142
t4100=165.123
t4200=167.104
t4300=169.086
t4400=171.068
t4500=173.051
t4600=175.033
t4700=177.016
t4800=178.999
t4900=180.982
t5000=182.965
t5100=184.948
t5200=186.932
t5300=188.916
t5400=190.899
t5500=192.883
t5600=194.867
t5700=196.852
t5800=198.836
t5900=200.820
t6000=202.805
[19]
simbolo=N
masa_atom=14.00674
prod_exp=N2
prod_bo=N2
ener_form=0.000
temp_vapor=77.35
t300=0.013
t400=0.710
t500=1.413
t600=2.125
t700=2.853
t800=3.596
t900=4.355
t1000=5.129
t1100=5.917
t1200=6.718
t1300=7.529
t1400=8.350
t1500=9.179
t1600=10.015
t1700=10.858
t1800=11.707
t1900=12.560
t2000=13.418
t2100=14.280
t2200=15.146
t2300=16.015
t2400=16.886
t2500=17.761
t2600=18.638
t2700=19.517
t2800=20.398
t2900=21.280
t3000=22.165
t3100=23.051
t3200=23.939
t3300=24.829
t3400=25.719
t3500=26.611
t3600=27.505
t3700=28.399
t3800=29.295
t3900=30.191
t4000=31.089
t4100=31.988
t4200=32.888
t4300=33.788
t4400=34.690
t4500=35.593
t4600=36.496
t4700=37.400
t4800=38.306
t4900=39.212
t5000=40.119
t5100=41.027
t5200=41.935
t5300=42.845
t5400=43.755
t5500=44.667
t5600=45.579
t5700=46.492
t5800=47.406
t5900=48.321
t6000=49.237
[20]
simbolo=Na
masa_atom=22.98977
prod_exp=Na2CO3
prod_bo=Na2O
ener_form=-270.300
temp_vapor=6000
t300=0.049
t400=2.867
t500=6.056
t600=9.702
t700=13.890
t800=17.837
t900=21.655
t1000=25.782
t1100=30.220
t1200=41.885
t1300=46.415
t1400=50.945
t1500=55.475
t1600=60.005
t1700=64.535
t1800=69.065
t1900=73.595
t2000=78.125
t2100=82.655
t2200=87.185
t2300=91.715
t2400=96.245
t2500=100.775
t2600=105.305
t2700=109.835
t2800=114.365
t2900=118.895
t3000=123.425
t3100=127.955
t3200=132.485
t3300=137.015
t3400=141.545
t3500=146.075
t3600=150.605
t3700=155.135
t3800=159.665
t3900=164.195
t4000=168.725
t4100=173.255
t4200=177.785
t4300=182.315
t4400=186.845
t4500=191.375
t4600=195.905
t4700=200.435
t4800=204.965
t4900=209.495
t5000=214.025
t5100=218.555
t5200=223.085
t5300=227.615
t5400=232.145
t5500=236.675
t5600=241.205
t5700=245.735
t5800=250.265
t5900=254.795
t6000=259.325
[21]

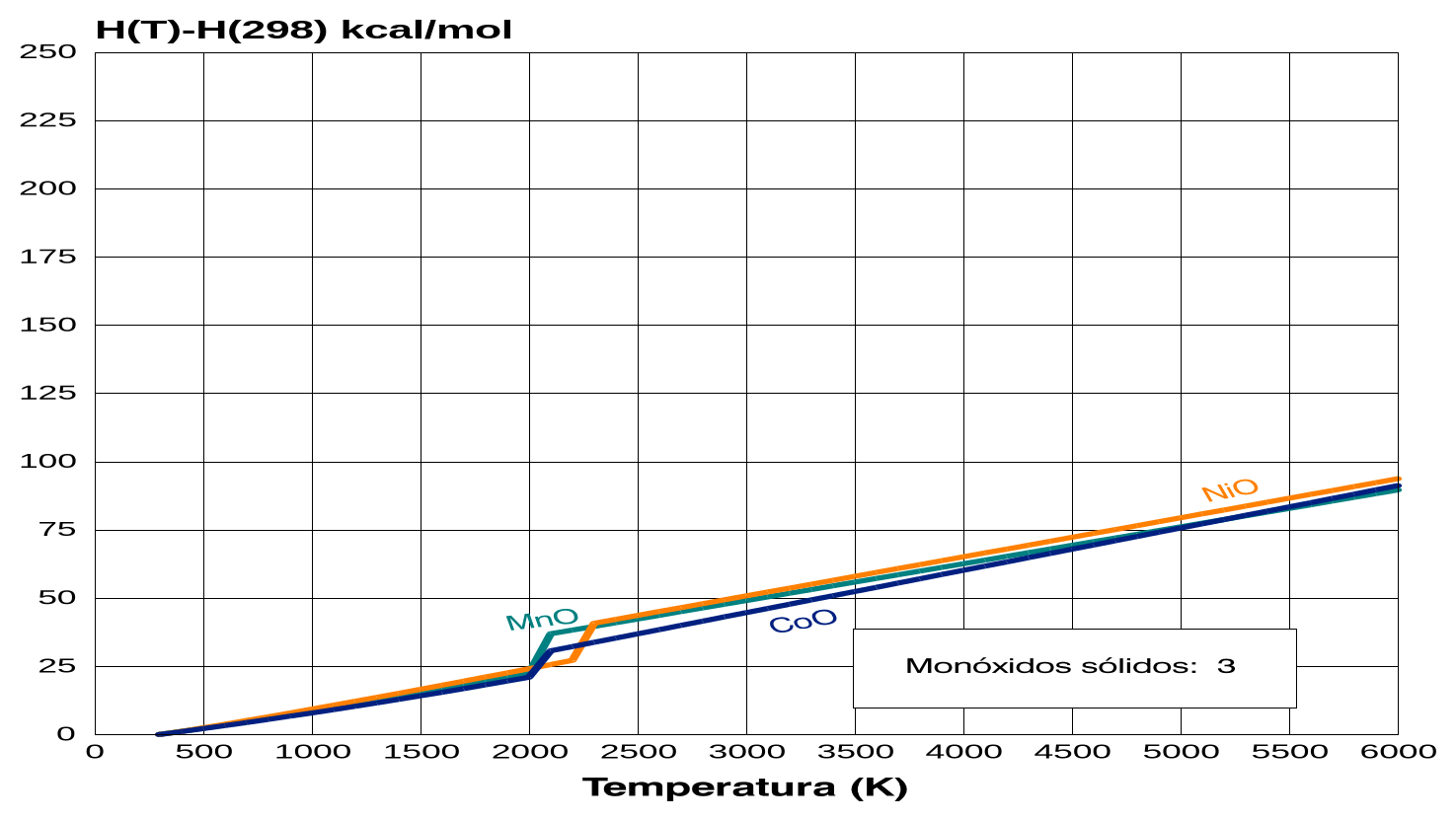

simbolo=Ni
masa_atom=58.69
prod_exp=NiO
prod_bo=Ni2O3
ener_form=-57.000
temp_vapor=6000
t300=0.019
t400=1.174
t500=2.435
t600=3.752
t700=5.106
t800=6.485
t900=7.884
t1000=9.299
t1100=10.729
t1200=12.172
t1300=13.626
t1400=15.091
t1500=16.566
t1600=18.052
t1700=19.547
t1800=21.052
t1900=22.566
t2000=24.089
t2100=25.621
t2200=27.162
t2300=40.751
t2400=42.181
t2500=43.611
t2600=45.041
t2700=46.471
t2800=47.901
t2900=49.331
t3000=50.761
t3100=52.191
t3200=53.621
t3300=55.051
t3400=56.481
t3500=57.911
t3600=59.341
t3700=60.771
t3800=62.201
t3900=63.631
t4000=65.061
t4100=66.491
t4200=67.921
t4300=69.351
t4400=70.781
t4500=72.211
t4600=73.641
t4700=75.071
t4800=76.501
t4900=77.931
t5000=79.361
t5100=80.791
t5200=82.221
t5300=83.651
t5400=85.081
t5500=86.511
t5600=87.941
t5700=89.371
t5800=90.801
t5900=92.231
t6000=93.661
[22]

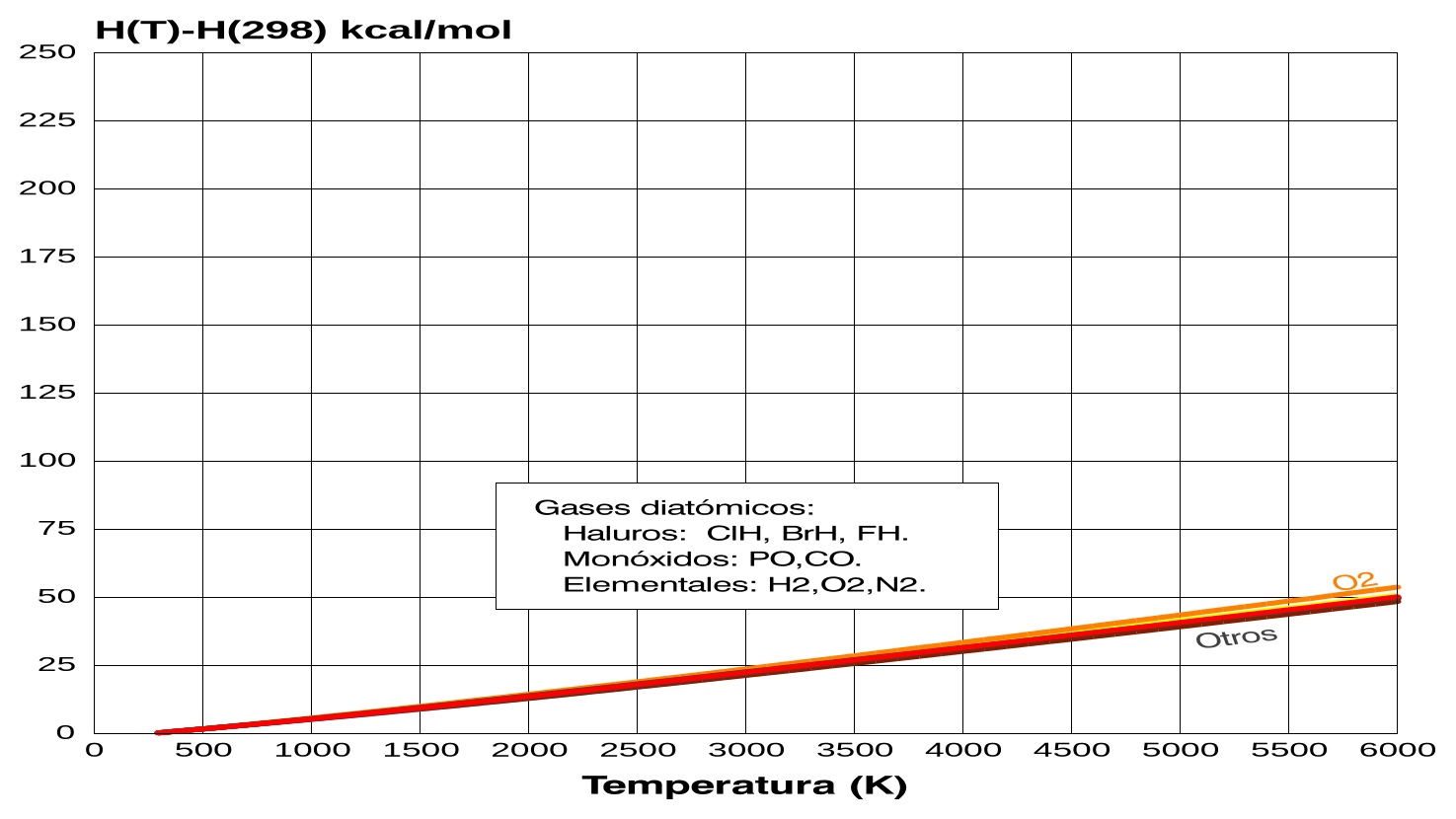

simbolo=O
masa_atom=15.9994
prod_exp=O2
prod_bo=O2
ener_form=0.000
temp_vapor=90.19
t300=0.013
t400=0.724
t500=1.455
t600=2.210
t700=2.988
t800=3.785
t900=4.600
t1000=5.427
t1100=6.266
t1200=7.114
t1300=7.971
t1400=8.835
t1500=9.706
t1600=10.583
t1700=11.465
t1800=12.354
t1900=13.249
t2000=14.149
t2100=15.054
t2200=15.966
t2300=16.882
t2400=17.804
t2500=18.732
t2600=19.664
t2700=20.602
t2800=21.545
t2900=22.493
t3000=23.446
t3100=24.403
t3200=25.365
t3300=26.331
t3400=27.302
t3500=28.276
t3600=29.254
t3700=30.236
t3800=31.221
t3900=32.209
t4000=33.201
t4100=34.196
t4200=35.193
t4300=36.193
t4400=37.196
t4500=38.201
t4600=39.208
t4700=40.218
t4800=41.229
t4900=42.247
t5000=43.257
t5100=44.274
t5200=45.292
t5300=46.311
t5400=47.332
t5500=48.353
t5600=49.277
t5700=50.401
t5800=51.426
t5900=52.452
t6000=53.479
[23]
simbolo=P
masa_atom=30.97376
prod_exp=PO
prod_bo=P2O5
ener_form=-1.160
temp_vapor=298.15
t300=0.014
t400=0.778
t500=1.561
t600=2.364
t700=3.185
t800=4.020
t900=4.867
t1000=5.723
t1100=6.586
t1200=7.455
t1300=8.329
t1400=9.206
t1500=10.088
t1600=10.972
t1700=11.858
t1800=12.747
t1900=13.638
t2000=14.531
t2100=15.425
t2200=16.320
t2300=17.217
t2400=18.116
t2500=19.015
t2600=19.915
t2700=20.817
t2800=21.719
t2900=22.623
t3000=23.527
t3100=24.432
t3200=25.338
t3300=26.245
t3400=27.152
t3500=28.061
t3600=28.970
t3700=29.879
t3800=30.790
t3900=31.701
t4000=32.613
t4100=33.525
t4200=34.438
t4300=35.352
t4400=36.266
t4500=37.181
t4600=38.097
t4700=39.013
t4800=39.930
t4900=40.848
t5000=41.766
t5100=42.684
t5200=43.603
t5300=44.523
t5400=45.444
t5500=46.365
t5600=47.286
t5700=48.208
t5800=49.131
t5900=50.054
t6000=50.978
[24]
simbolo=Pb
masa_atom=207.2
prod_exp=PbO
prod_bo=PbO2
ener_form=-44.860
temp_vapor=6000
t300=0.022
t400=1.222
t500=2.462
t600=3.742
t700=5.062
t800=6.834
t900=8.283
t1000=9.796
t1100=11.373
t1200=15.732
t1300=17.192
t1400=18.652
t1500=20.112
t1600=21.572
t1700=23.032
t1800=75.168
t1900=76.052
t2000=76.940
t2100=77.832
t2200=78.728
t2300=79.628
t2400=80.532
t2500=81.440
t2600=82.352
t2700=83.268
t2800=84.188
t2900=85.112
t3000=86.040
t3100=86.972
t3200=87.908
t3300=88.848
t3400=89.792
t3500=90.740
t3600=91.692
t3700=92.648
t3800=93.608
t3900=94.572
t4000=95.540
t4100=96.512
t4200=97.488
t4300=98.468
t4400=99.452
t4500=100.440
t4600=101.432
t4700=102.428
t4800=103.428
t4900=104.432
t5000=105.440
t5100=106.452
t5200=107.468
t5300=108.488
t5400=109.512
t5500=110.540
t5600=111.572
t5700=112.608
t5800=113.648
t5900=114.692
t6000=115.740
[25]
simbolo=S
masa_atom=32.066
prod_exp=SO2
prod_bo=SO2
ener_form=-70.950
temp_vapor=263.15
t300=0.018
t400=1.016
t500=2.093
t600=3.237
t700=4.433
t800=5.669
t900=6.936
t1000=8.225
t1100=9.540
t1200=10.886
t1300=12.206
t1400=13.556
t1500=14.915
t1600=16.282
t1700=17.656
t1800=19.035
t1900=20.420
t2000=21.809
t2100=23.407
t2200=24.601
t2300=26.002
t2400=27.402
t2500=28.815
t2600=30.225
t2700=31.639
t2800=33.055
t2900=34.474
t3000=35.895
t3100=37.317
t3200=38.745
t3300=40.173
t3400=41.603
t3500=43.035
t3600=44.469
t3700=45.906
t3800=47.344
t3900=48.784
t4000=50.226
t4100=51.670
t4200=53.116
t4300=54.563
t4400=56.013
t4500=57.464
t4600=58.917
t4700=60.371
t4800=61.828
t4900=63.286
t5000=64.745
t5100=66.207
t5200=67.670
t5300=69.134
t5400=70.601
t5500=72.069
t5600=73.538
t5700=75.040
t5800=76.482
t5900=77.957
t6000=79.343
[26]
simbolo=Sb
masa_atom=121.75
prod_exp=Sb2O3
prod_bo=Sb2O5
ener_form=-168.560
temp_vapor=6000
t300=0.045
t400=2.553
t500=5.233
t600=8.083
t700=11.105
t800=14.297
t900=17.661
t1000=35.965
t1100=39.565
t1200=43.165
t1300=46.765
t1400=50.365
t1500=53.965
t1600=57.565
t1700=70.060
t1800=72.140
t1900=74.220
t2000=76.300
t2100=78.380
t2200=80.460
t2300=82.540
t2400=84.620
t2500=86.700
t2600=88.780
t2700=90.860
t2800=92.940
t2900=95.020
t3000=97.100
t3100=99.180
t3200=101.260
t3300=103.340
t3400=105.420
t3500=107.500
t3600=109.580
t3700=111.660
t3800=113.740
t3900=115.820
t4000=117.900
t4100=119.980
t4200=122.060
t4300=124.140
t4400=126.220
t4500=128.300
t4600=130.380
t4700=132.460
t4800=134.540
t4900=136.620
t5000=138.700
t5100=140.780
t5200=142.860
t5300=144.940
t5400=147.020
t5500=149.100
t5600=151.180
t5700=153.260
t5800=155.340
t5900=157.420
t6000=159.500
[27]
simbolo=Si
masa_atom=28.0855
prod_exp=SiO2
prod_bo=SiO2
ener_form=-217.100
temp_vapor=2230
t300=0.012
t400=0.937
t500=2.195
t600=3.621
t700=5.145
t800=6.731
t900=8.359
t1000=10.017
t1100=11.699
t1200=13.399
t1300=15.113
t1400=16.840
t1500=18.577
t1600=20.323
t1700=22.076
t1800=23.837
t1900=25.306
t2000=29.679
t2100=31.729
t2200=33.779
t2300=171.149
t2400=172.620
t2500=174.092
t2600=175.565
t2700=177.040
t2800=178.516
t2900=179.993
t3000=181.471
t3100=182.949
t3200=184.428
t3300=185.908
t3400=187.389
t3500=188.870
t3600=190.351
t3700=191.833
t3800=193.316
t3900=194.799
t4000=196.282
t4100=197.765
t4200=199.249
t4300=200.734
t4400=202.218
t4500=203.703
t4600=205.188
t4700=206.673
t4800=208.158
t4900=209.645
t5000=211.130
t5100=212.616
t5200=214.102
t5300=215.588
t5400=217.075
t5500=218.561
t5600=220.048
t5700=221.535
t5800=223.022
t5900=224.509
t6000=225.996
[28]
simbolo=Ti
masa_atom=47.88
prod_exp=TiO2
prod_bo=TiO2
ener_form=-225.200
temp_vapor=3023.15
t300=0.024
t400=1.423
t500=2.928
t600=4.500
t700=6.122
t800=7.785
t900=9.485
t1000=11.219
t1100=12.985
t1200=14.781
t1300=16.608
t1400=16.464
t1500=20.348
t1600=22.262
t1700=24.203
t1800=26.173
t1900=28.170
t2000=30.196
t2100=32.249
t2200=48.341
t2300=52.441
t2400=54.531
t2500=56.641
t2600=58.741
t2700=60.841
t2800=62.941
t2900=65.031
t3000=67.141
t3100=203.522
t3200=205.204
t3300=206.486
t3400=207.970
t3500=209.452
t3600=210.935
t3700=212.419
t3800=213.903
t3900=215.388
t4000=216.872
t4100=218.357
t4200=219.843
t4300=221.328
t4400=222.814
t4500=224.297
t4600=225.786
t4700=227.272
t4800=228.759
t4900=230.245
t5000=231.716
t5100=233.219
t5200=234.706
t5300=236.193
t5400=237.681
t5500=239.168
t5600=240.656
t5700=242.143
t5800=243.631
t5900=245.119
t6000=246.607
[29]
simbolo=W
masa_atom=185.85
prod_exp=WO3
prod_bo=WO3
ener_form=-200.570
temp_vapor=2110
t300=0.032
t400=1.896
t500=3.942
t600=6.118
t700=8.382
t800=10.706
t900=13.074
t1000=15.483
t1100=18.235
t1200=20.620
t1300=23.044
t1400=25.507
t1500=28.009
t1600=30.551
t1700=33.131
t1800=53.592
t1900=56.743
t2000=59.893
t2100=60.042
t2200=84.427
t2300=85.396
t2400=87.366
t2500=89.337
t2600=91.310
t2700=93.283
t2800=95.258
t2900=97.233
t3000=99.209
t3100=101.186
t3200=103.164
t3300=105.142
t3400=107.121
t3500=109.100
t3600=111.079
t3700=113.059
t3800=115.040
t3900=117.020
t4000=118.997
t4100=120.983
t4200=122.964
t4300=124.946
t4400=126.928
t4500=128.911
t4600=130.893
t4700=132.876
t4800=134.859
t4900=136.842
t5000=138.825
t5100=140.809
t5200=142.792
t5300=144.776
t5400=146.760
t5500=148.744
t5600=150.728
t5700=152.712
t5800=154.696
t5900=156.681
t6000=158.665
[30]
simbolo=Zn
masa_atom=65.39
prod_exp=ZnO
prod_bo=ZnO
ener_form=-82.940
temp_vapor=6000
t300=0.018
t400=1.050
t500=2.167
t600=3.332
t700=4.530
t800=5.754
t900=6.998
t1000=8.261
t1100=9.540
t1200=10.835
t1300=12.145
t1400=13.468
t1500=14.806
t1600=16.157
t1700=17.521
t1800=18.899
t1900=20.289
t2000=21.692
t2100=23.108
t2200=24.536
t2300=25.978
t2400=27.431
t2500=28.898
t2600=30.376
t2700=31.868
t2800=33.371
t2900=34.887
t3000=36.416
t3100=37.956
t3200=39.510
t3300=41.075
t3400=42.653
t3500=44.243
t3600=45.845
t3700=47.460
t3800=49.087
t3900=50.726
t4000=52.377
t4100=54.041
t4200=55.717
t4300=57.406
t4400=59.106
t4500=60.819
t4600=62.544
t4700=64.281
t4800=66.031
t4900=67.793
t5000=69.567
t5100=71.353
t5200=73.151
t5300=74.962
t5400=76.785
t5500=78.620
t5600=80.468
t5700=82.327
t5800=84.199
t5900=86.083
t6000=87.979
[31]
simbolo=Zr
masa_atom=91.224
prod_exp=ZrO2
prod_bo=ZrO2
ener_form=-261.700
temp_vapor=4548
t300=0.025
t400=1.471
t500=3.048
t600=4.699
t700=6.400
t800=8.139
t900=9.909
t1000=11.707
t1100=13.529
t1200=15.375
t1300=17.242
t1400=19.131
t1500=22.430
t1600=24.210
t1700=25.990
t1800=27.770
t1900=29.550
t2000=31.330
t2100=33.110
t2200=34.890
t2300=36.670
t2400=38.450
t2500=40.230
t2600=42.010
t2700=43.790
t2800=45.570
t2900=47.350
t3000=70.026
t3100=72.126
t3200=74.226
t3300=76.326
t3400=78.426
t3500=80.526
t3600=82.626
t3700=84.726
t3800=86.826
t3900=88.926
t4000=91.026
t4100=93.126
t4200=95.226
t4300=97.226
t4400=99.426
t4500=101.526
t4600=252.401
t4700=253.790
t4800=255.179
t4900=256.567
t5000=257.956
t5100=259.346
t5200=260.735
t5300=262.626
t5400=263.513
t5500=264.903
t5600=266.292
t5700=267.682
t5800=269.071
t5900=270.461
t6000=271.851
[32]
simbolo=--
masa_atom=0.00000
prod_exp=C
prod_bo=--
ener_form=0.050
temp_vapor=6000
t300=0.004
t400=0.250
t500=0.569
t600=0.947
t700=1.372
t800=1.831
t900=2.318
t1000=2.824
t1100=3.347
t1200=3.883
t1300=4.432
t1400=4.988
t1500=5.552
t1600=6.122
t1700=6.696
t1800=7.275
t1900=7.857
t2000=8.442
t2100=9.029
t2200=9.620
t2300=10.212
t2400=10.807
t2500=11.403
t2600=12.002
t2700=12.602
t2800=13.203
t2900=13.807
t3000=14.412
t3100=15.018
t3200=15.626
t3300=16.236
t3400=16.847
t3500=17.460
t3600=18.074
t3700=18.690
t3800=19.307
t3900=19.926
t4000=20.546
t4100=21.168
t4200=21.792
t4300=22.416
t4400=23.045
t4500=23.674
t4600=24.305
t4700=24.937
t4800=25.572
t4900=26.208
t5000=26.846
t5100=27.487
t5200=28.129
t5300=28.773
t5400=29.419
t5500=30.068
t5600=30.718
t5700=31.371
t5800=32.026
t5900=32.683
t6000=33.342
[33]
simbolo=--
masa_atom=0.00000
prod_exp=CO
prod_bo=--
ener_form=-26.760
temp_vapor=81.65
t300=0.013
t400=0.711
t500=1.417
t600=2.137
t700=2.873
t800=3.627
t900=4.397
t1000=5.183
t1100=5.983
t1200=6.794
t1300=7.616
t1400=8.446
t1500=9.285
t1600=10.130
t1700=10.980
t1800=11.836
t1900=12.697
t2000=13.561
t2100=14.430
t2200=15.301
t2300=16.175
t2400=17.052
t2500=17.931
t2600=18.813
t2700=19.696
t2800=20.582
t2900=21.469
t3000=22.357
t3100=23.248
t3200=24.139
t3300=25.032
t3400=25.927
t3500=26.822
t3600=27.719
t3700=28.617
t3800=29.516
t3900=30.416
t4000=31.316
t4100=32.218
t4200=33.121
t4300=34.025
t4400=34.930
t4500=35.835
t4600=36.741
t4700=37.649
t4800=38.557
t4900=39.465
t5000=40.375
t5100=41.285
t5200=42.196
t5300=43.108
t5400=44.021
t5500=44.934
t5600=45.849
t5700=46.763
t5800=47.679
t5900=48.595
t6000=49.513
[34]
simbolo=--
masa_atom=0.00000
prod_exp=H2
prod_bo=--
ener_form=0.000
temp_vapor=20.35
t300=0.013
t400=0.707
t500=1.406
t600=2.106
t700=2.808
t800=3.514
t900=4.226
t1000=4.944
t1100=5.670
t1200=6.404
t1300=7.148
t1400=7.902
t1500=8.668
t1600=9.446
t1700=10.233
t1800=11.030
t1900=11.836
t2000=12.651
t2100=13.475
t2200=14.307
t2300=15.146
t2400=15.993
t2500=16.848
t2600=17.708
t2700=18.575
t2800=19.448
t2900=20.326
t3000=21.210
t3100=22.098
t3200=22.992
t3300=23.891
t3400=24.794
t3500=25.703
t3600=26.616
t3700=27.535
t3800=28.457
t3900=29.385
t4000=30.317
t4100=31.253
t4200=32.194
t4300=33.139
t4400=34.088
t4500=35.042
t4600=35.999
t4700=36.961
t4800=37.926
t4900=38.895
t5000=39.868
t5100=40.845
t5200=41.825
t5300=42.809
t5400=43.797
t5500=44.788
t5600=45.783
t5700=46.781
t5800=47.783
t5900=48.788
t6000=49.796
;--------------------------------------------------------------------------
; Fin Archivo: TABLPROD.DAT
;--------------------------------------------------------------------------D.4 ARCHIVO DE INICIALIZACIÓN (EXPLOCAL.INI)
El archivo de inicialización se debe encontrar en el directorio de Windows:
C:\WINDOWS
Este archivo almacena las preferencias.
;_____________________________________________________________________
;
; Archivo: EXPLOCAL.INI
; Descripción: Archivo de inicialización de EXPLOCAL.EXE
;_____________________________________________________________________
[Datos]
unidad=calorías
directorio=c:\explocal
;_____________________________________________________________________
; Fin del archivo: EXPLOCAL.INI
;_____________________________________________________________________D.5 DESCRIPCIÓN DE LOS ERRORES (ERROR.DAT)
;---------------------------------------------------------------------
; Archivo: ERROR.DAT
;----------------------------------------------------------------------
;
[Error]
0=- ERRORES:
1=- Aviso: Falta el nombre de la mezcla explosiva.
2=- Aviso: Densidad de encartuchado errónea. Usando valor por defecto.
3=- Aviso: No se producen productos de explosión gaseosos.
4=- Aviso: No existen productos de explosión.
5=- Aviso: Ecuación temperatura.Número máximo de iteraciones rebasado.
6=- Error: No se encuentran los datos de todos los reactivos.
7=- Error: Archivo 'TABLPROD.DAT' no accesible.
8=- Error: Archivo 'CONSTANT.DAT' no accesible.
9=- Error: Archivo 'REACTIVO.DAT' no accesible.
10=- Error: Reacción no exotérmica. No hay detonación.
11=- Error: Ecuación temperatura. Sistema sin solución.
12=- Error: Ecuación temperatura. Error en el grado del sistema.
13=- Error: Índice acceso a tabla de datos no válido.
14=- Error: Índice acceso a tabla de datos no válido.
15=- Error: División por cero.
16=- Error: Error en la consigna de errores.
;_____________________________________________________________________
; Fin del archivo: ERRORES.DAT
;_____________________________________________________________________D.6 Datos de origen de los productos de explosión
Nota editorial: además de los ficheros .DAT anteriores (ya integrados en Explocal), el material de trabajo original conservado en el repositorio (docs/aux/) incluye los borradores y gráficas por categoría química con los que se compilaron los datos de entalpía de la tabla 3-4 y del apartado D.3 (TBLPROD.DAT). Dos de esos ficheros (TBLENT1.DOC, un borrador de la tabla 3-4, y TERMOTAB.DOC, un “Apéndice II” con datos de reactivos que se solapa con D.1) no se reproducen aquí de nuevo por duplicar contenido ya presentado; sí se incluyen las 9 gráficas, que no tienen equivalente en ningún otro punto de esta memoria.
